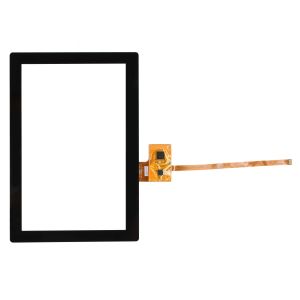

POS G+G 10.1 Inch Projected Capacitive Touch Panel With I2C Interface , Lcd Touch Screen Panel

№

Item

Specification (Some index value will be adjusted according to customizated requirements)

1

Item NO.

DP-GG10103005IIC

2

Detection method

Projected Capacitive

3

Size

10.1"

4

Outline dimension(mm)

See drawing

5

View area(mm)

6

Active area(mm)

7

Aspect ratio

16:9 or 4:3

8

Resolution

1024*1024

9

Input method

Finger

10

Touch action force

30~60g

11

Operating Voltage

3.3V adjustable

12

Operating current

2.5~10mA Depends on IC

13

Operating temperature

-10°C~60°C

14

Storage temperature

-15°C~40°C ,＜90%RH；-20°C~70°C,＜60%RH

15

Humidity

10%~90%RH at 40°C, non-condensing

16

Relative humidity

10%~90%RH at 40°C, non-condensing

17

Response time

<10ms

18

Transparency

≥82% depends on the quantity of layers

19

Surface hardness

≥6H

20

Material structure

Glass+ Glass

21

Thickness

1.6mm adjustable Glass(1.1mm) +Top ITO Film(0.125mm) +Bottom ITO Film(0.125mm)

22

Light transmission

92%~100%

23

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

24

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

25

Certificates

CE, FCC, RoHS

26

Working environment

Under sunlight,indoor and outdoor

27

Finger Touch life

≥35,000,000 times

28

Warranty

1 year
